Accessories / Waterproofing equipment

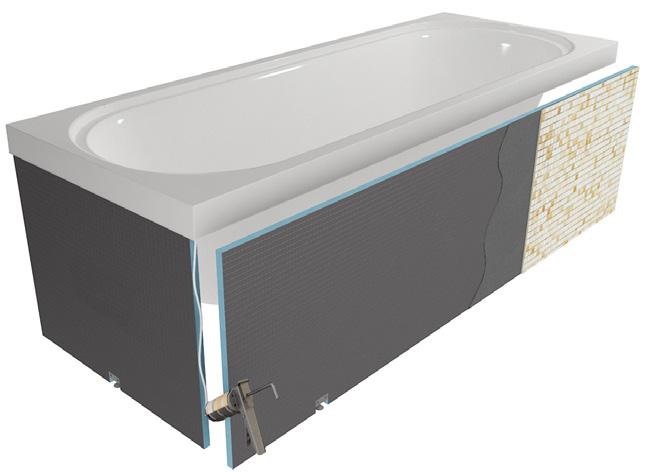

Bath Panels
Code TPBP1 / TPBP2
Bath Panels
Perfect for tiling around your bath with tiles matching the walls and/or floor, Thermopanel bath panels offer the best solution.
The panels just need to the cut to the correct length, positioned and height adjusted using the integral feet. Your now ready to tile!
| Part Number | Description | Length (mm) | Width (mm) | Depth (mm) |
|---|---|---|---|---|
| TPBP1 | Tileable Side Bath Panel with 2 adjustable Feet | 2100 | 600 | 30 |
| TPBP2 | Tileable End Bath Panel with 1 adjustable Foot | 770 | 600 | 30 |

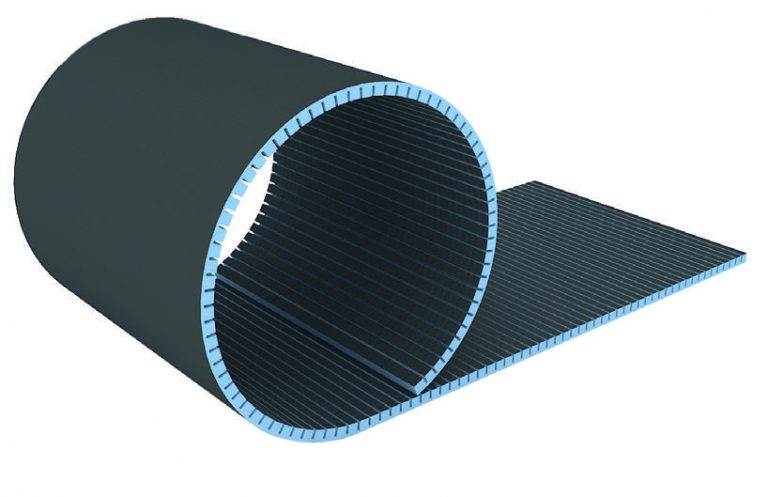

Curved Boards
Code TP20CB
Curved Boards
Thermopanel Pre-Slit Curved Boards are the perfect solution for the fast creation of curved walls, curved bathroom panels,moulded tiled seats and P-shaped baths.
The boards are exceptionally easy to work with, easy to cut and shape with excellent tile adhesion and waterproofing properties.
| Part Number | Description | Length (mm) | Width (mm) | Depth (mm) |
|---|---|---|---|---|
| TP20CB | Curved Construction board | 1250 | 600 | 20 |
(1 x 5m / 1 x 30m)
Code WP-LINER-5 / WP-LINER-30
Shower Liner
Used under floor tiles to help prevent water leakage
| Part Number | Description | Length (m) | Width (mm) |
|---|---|---|---|
| WP-LINER-5 | Shower Liner | 5 | 1000 |
| WP-LINER-30 | Shower Liner | 30 | 1000 |
5m Waterproof membrane tape
Code WP-TAPE-5
5m Waterproof membrane tape
Used around the joints in a wet room to help seal them to prevent water leakage
| Part Number | Description | Length (m) | Width (mm) |
|---|---|---|---|
| WP-TAPE-5 | 5m Waterproof membrane tape | 5 | 125 |
Waterproof membrane internal corner
Code WP-COR-INT
Waterproof membrane internal corner
Used to join tile backer boards on an internal corner, sealed with waterproofing
| Part Number | Description |
|---|---|
| WP-COR-INT | Waterproof membrane internal corner |
Waterproof membrane external corner
Code WP-COR-EXT
Waterproof membrane external corner
Used to join tile backer boards on an external corner, sealed with waterproofing
| Part Number | Description |
|---|---|
| WP-COR-EXT | Waterproof membrane external corner |
Thermofix Solvent free adhesive & sealant
Code THERMOFIX
Thermofix Solvent free adhesive & sealant
Based on STP polymer technology Thermofix offers outstanding adhesion to sanitary, bathroom, wetroom, kitchen and plumbing materials. Thermofix can be applied to wet surfaces, will even work underwater, and contains a mould shield which can protect you against mould for 5 years.
| Part Number | Description |
|---|---|
| THERMOFIX | Thermofix Solvent free adhesive & sealant |
36mm Stainless steel fixing washers – 100No.
Code MSW36
36mm Stainless steel fixing washers - 100No.
For use with the Thermopanel tile backer boards
With the appropriate stainless steal screws, our slimline stainless steel washers grip tightly into the surface as they become almost flush with the board.
| Part Number | Description | Quantity |
|---|---|---|
| MSW36 | 36mm Stainless steel fixing washers | 100 |
Levelling compound
Code SMS30
Levelling compound
Levels substrates in the range of 3 – 30 mm – both when the substrate has only local irregularities and when it is executed with a slight slope.
May be used in rooms of increased humidity, such as house bathrooms.
Recommended as subfloor under facings in offices, kindergartens, schools, apartments etc. – due to smooth surface it forms and fine aggregate.
The main characteristics
- under parquet, tiles, panels, carpet flooring
- foot traffic just after 4 hours
- for equalizing levels in floor repairs
- low linear contraction
The main parameters
- consumption: 20 kg / 1 m² / 10 mm of layer thickness
- compressive strength: ≥ 30.0 N/mm²
- layer thickness: 3 ÷ 30 mm
| Part Number | Description |
|---|---|
| SMS30 | Levelling compound |
Code PLUS EXPRESS
Tile adhesive
Owing to the high content of redispersible polymer resins, the cement adhesive gets unique properties and offers the highest technical and operation parameters assuring long term durability.
The presence of polymers ensures high bonding of any cladding to any substrate type, including, so called, difficult and critical ones.
Owing to the interchange of the polymer network with the network of inorganic hydration cement bindings, the adhesive offers outstanding parameters. The use of fast setting cement enables rapid growth of bonding and strength not later than 6 hours since the tiles fixing.
The main characteristics
- for cladding requiring quick work progress and possibility of almost immediate usage
- for any type of ceramic, stone, glass cladding, composite panels
- for small, medium and large size tiles
- for difficult substrates: floor heating systems, OSB and plasterboards, old tiles, wooden floors, metal and plastic surfaces
- on terraces, balconies and façades, in pools and technological tanks
- for residential, commercial and service, public access and industrial buildings
The main parameters
- consumption: approx. 1.5 kg of dry mix / 1 m² / 1 mm adhesive layer
- deformability S1
- adhesive thickness: 2 – 5 mm
- high bonding: ≥ 1 N/mm²
| Part Number | Description |
|---|---|
| PLUS EXPRESS | Tile adhesive |
(1 x 5M / 1x 20M)
Code DCMF-5 / DCMF-20
Decoupling membrane fleece
Uncoupling / Decoupling membrane is a barrier placed between the tiles and the substrate ensuring that any movement or cracks are isolated and do not transfer through to the tiles. These anti-crack mats will also provide a 100% waterproof barrier.
Suitable for:
- Wood Or Concrete Floors
- Wetrooms or Commercial Areas
- Underfloor heating
- Ceramic, Porcelain, Stone or Mosaic Tiles
Why Use A Waterproof Decoupling Membrane
Building materials expand and contract with changes in temperature. These materials vary in how much they move and sometimes these differences create crack or stresses that can be disastrous to tiled above and cause it to expand the substrate which can then lead to cracks in tiles and grout joints, or even cause tiles to de-bond.
Uncoupling / Decoupling matting reduces the risk and will make sure that tiles do not crack. As the floor moves the fleece will decouple from the waterproof layer of the mat so allowing the floor to move but not the tiles on top of it, and prevent cracking. The fleece layer on the matting provides a protective barrier between your tiled surface and the floor substrate it will also give you a 100% waterproof Barrier.
| Part Number | Description | Length (m) | Width (mm) |
|---|---|---|---|
| DCMF-5 | Decoupling membrane fleece | 5 | 1000 |
| DCMF-20 | Decoupling membrane fleece | 20 | 1000 |
Butyl waterproofing tape
Code B-TAPE
Butyl waterproofing tape
Designed for use beneath ceramic, porcelain, natural stone and mosaic tiles for flexible waterproofing at board junctions
| Part Number | Description | Length (m) | Width (mm) |
|---|---|---|---|
| BTAPE | Butyl waterproofing tape | 5 | 100 |
AFPROMAT Decoupling Membrane
Code AFPROMAT5 / AFPROMAT10 / AFPROMAT30
AFPROMAT Decoupling Membrane
Thermopanel AFPROMAT is an uncoupling membrane specifically designed to allow the installation of ceramic and stone tile over any even and load-bearing substrate and underlayment for ceramic and stone tile.
Being designed to be geometrically configured to provide air space between the tile and the substrate allows independent movement between the two and limits the transfer of any stresses.
AFPROMAT is made from polyethene membrane with a grid structure of square cavities, each cut back in a dovetail configuration, and an anchoring fleece laminated to the underside. The anchoring fleece is embedded in a thin-set mortar to provide a mechanical bond to the substrate.
| Part Number | Description |
|---|---|
| AFPROMAT5 | 5m x 1m Roll |
| AFPROMAT10 | 10m x 1m Roll |
| AFPROMAT30 | 30m x 1m Roll |
