Square drain shower trays

Mokra shower tray with square drain

Thermopanel shower tray kit consists of a shower tray and a drainage system. Both components are coordinated with each other and form one unit.

Tiled

for use with tiled floors only

For use with tiled floors only

PLACHOLDER

Specifications

Part numberDescription

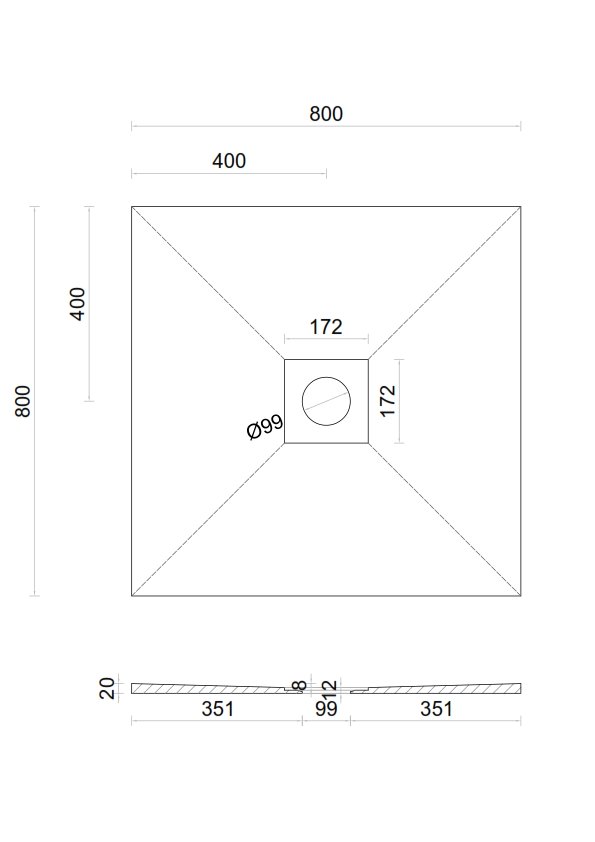

SF0808CEN800 x 800 x 20mm Square Shower Tray with Centre Drain

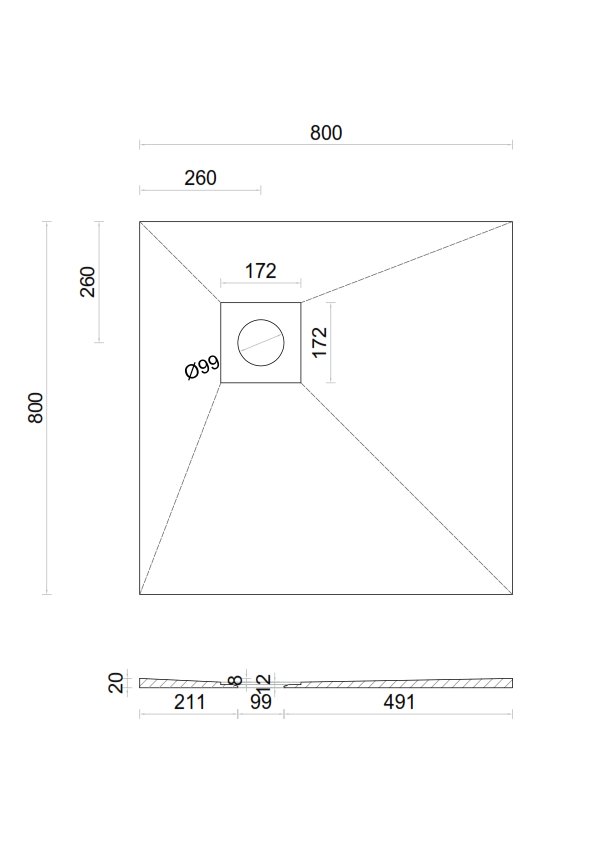

SF0808COR800 x 800 x 20mm Square Shower Tray with Corner Drain

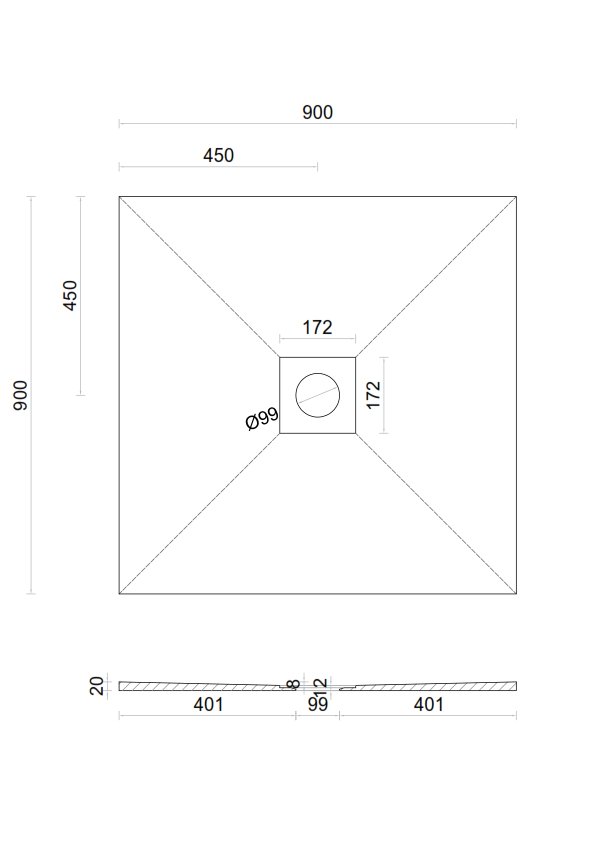

SF0909CEN900 x 900 x 20mm Square Shower Tray with Centre Drain

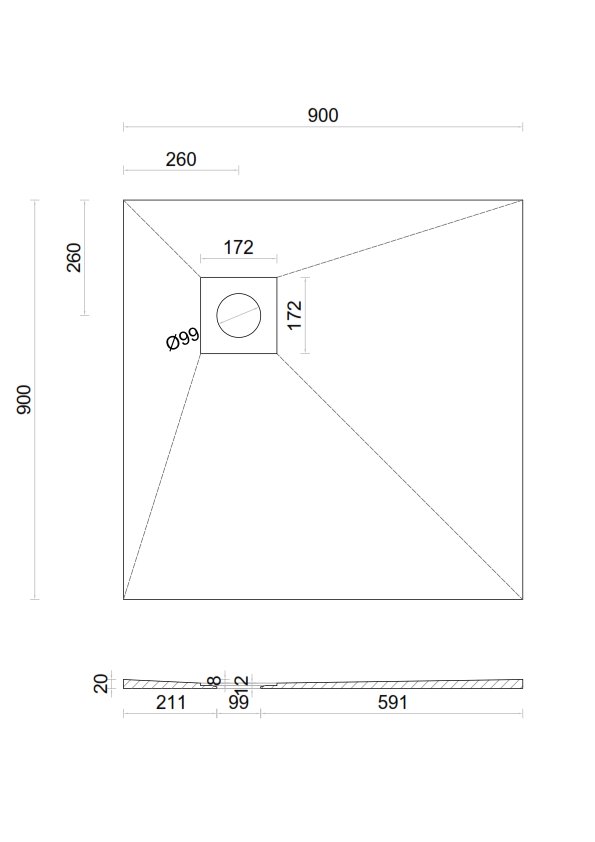

SF0909COR900 x 900 x 20mm Square Shower Tray with Corner Drain
SF1010CEN1000 x 1000 x 20mm Square Shower Tray with Centre Drain

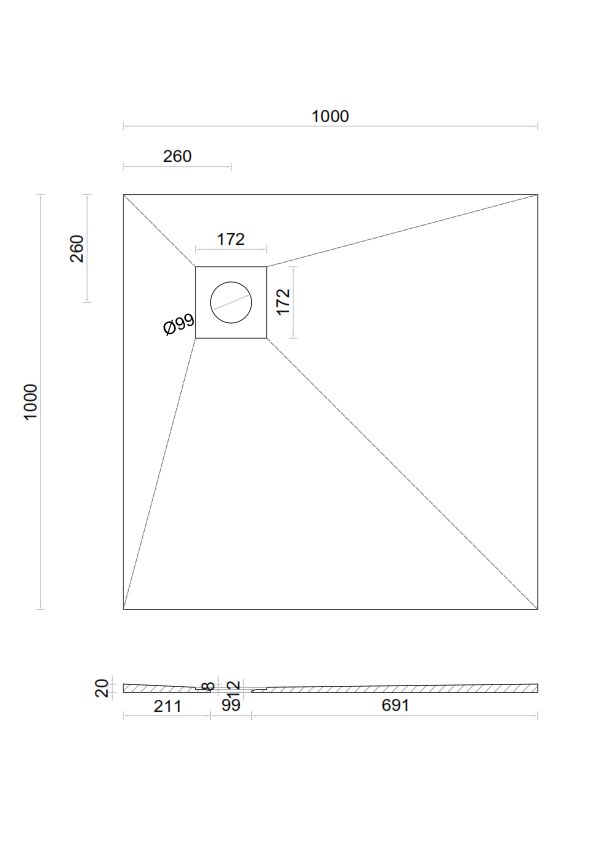

SF1010COR1000 x 1000 x 20mm Square Shower Tray with Corner Drain
SF1010OFF1000 x 1000 x 20mm Square Shower Tray with Offset Drain

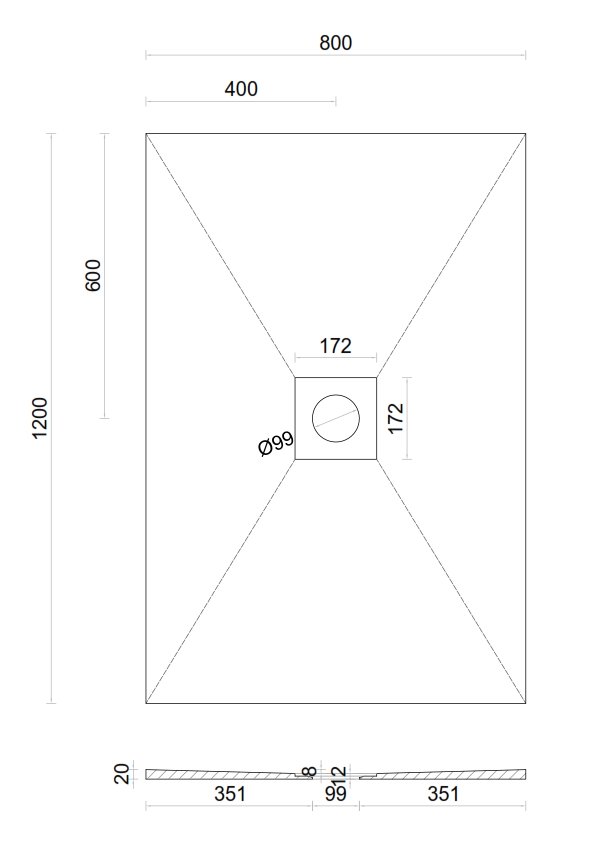

SF1208CEN1200 x 800 x 20mm Rectangular Shower Tray with Centre Drain

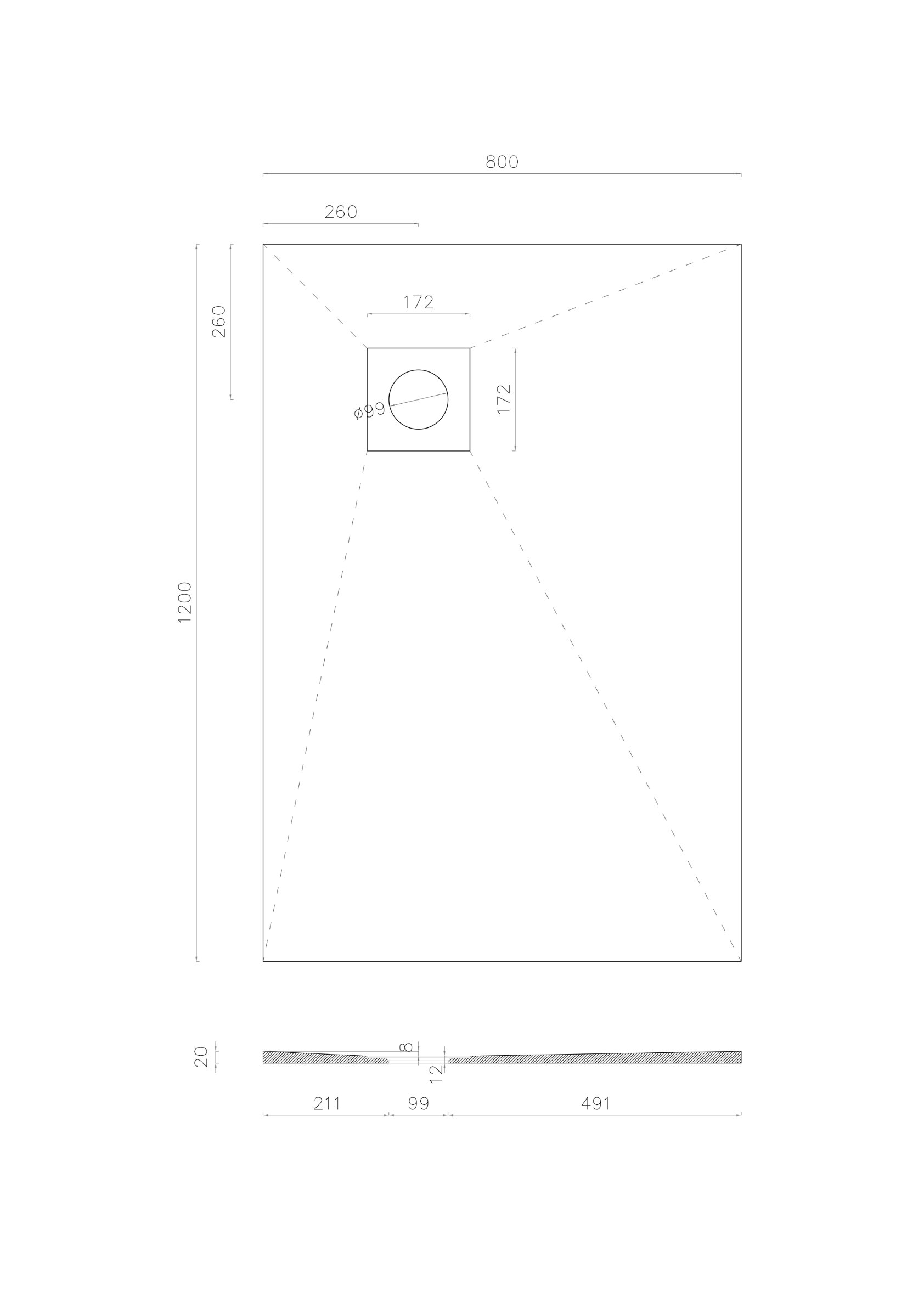

SF1208COR1200 x 800 x 20mm Rectangular Shower Tray with Corner Drain

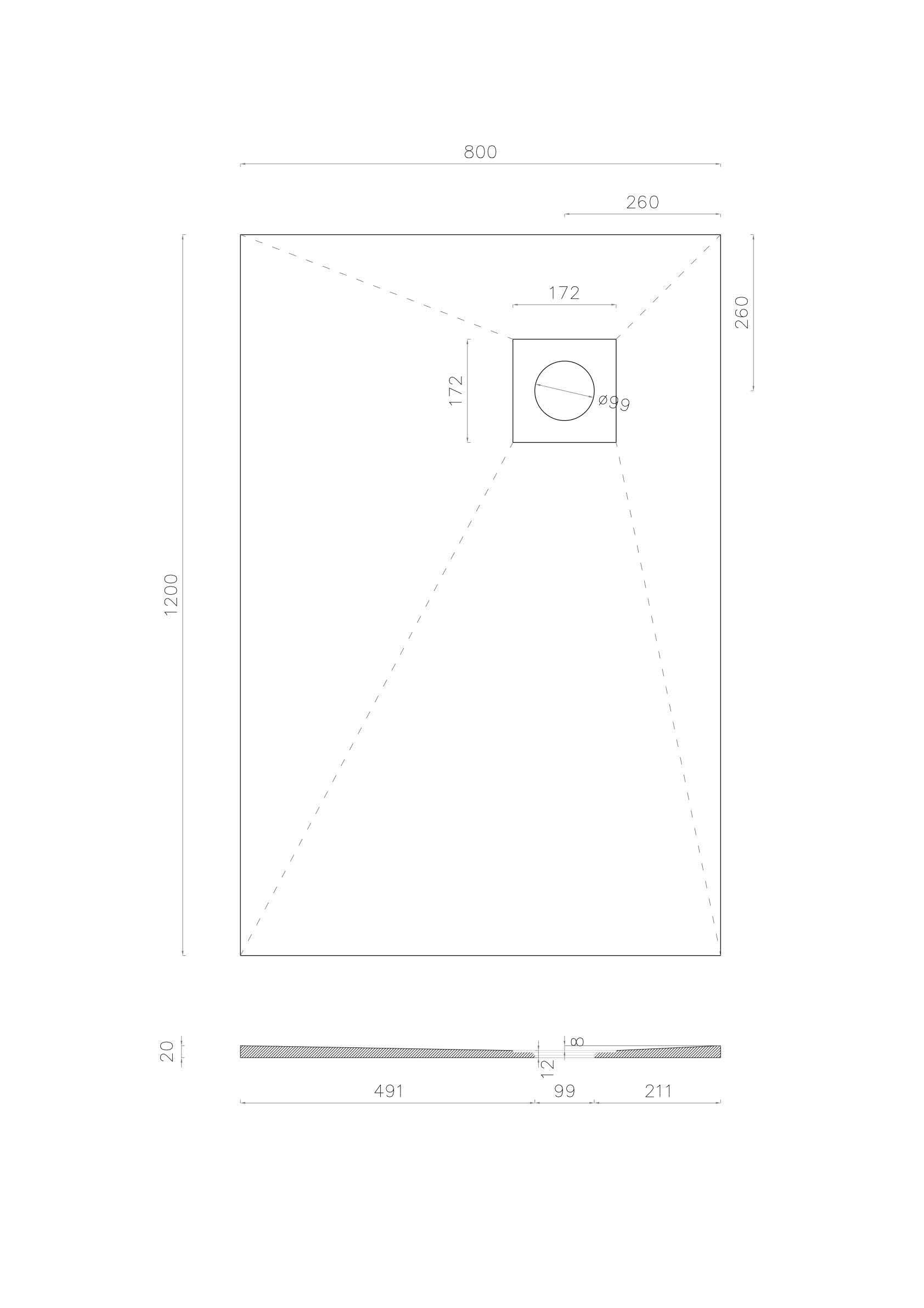

SF1208COR-R1200 x 800 x 20mm Rectangular Shower Tray with Right Corner Drain

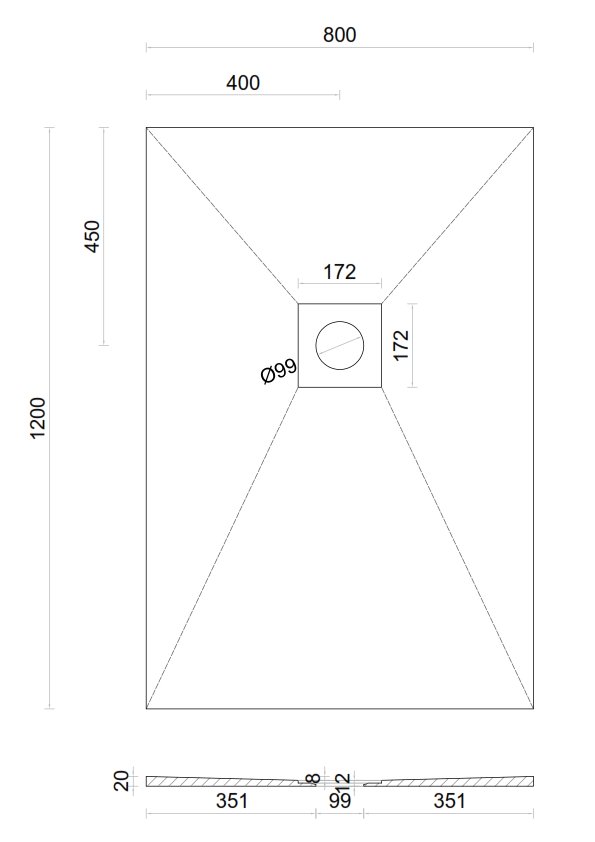

SF1208OFF1200 x 800 x 20mm Rectangular Shower Tray with Offset Drain

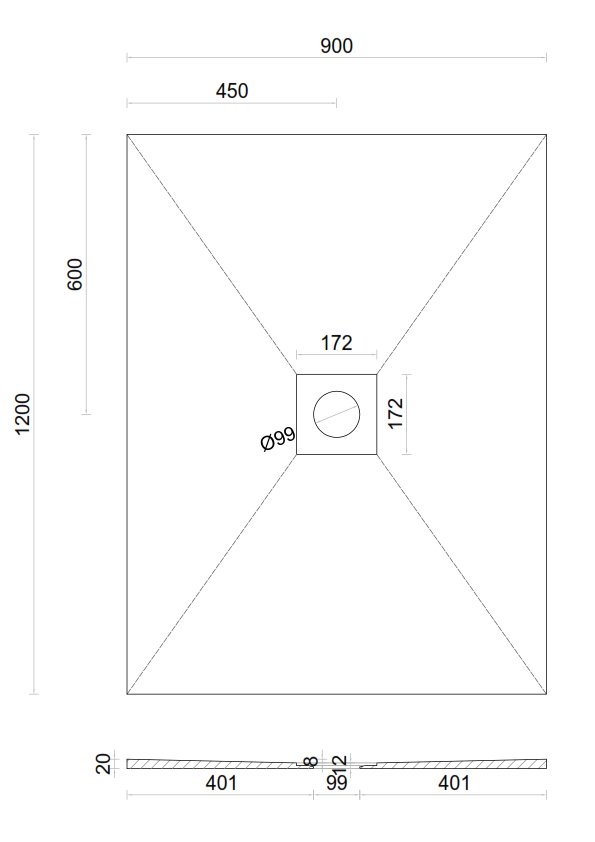

SF1209CEN1200 x 900 x 20mm Rectangular Shower Tray with Centre Drain

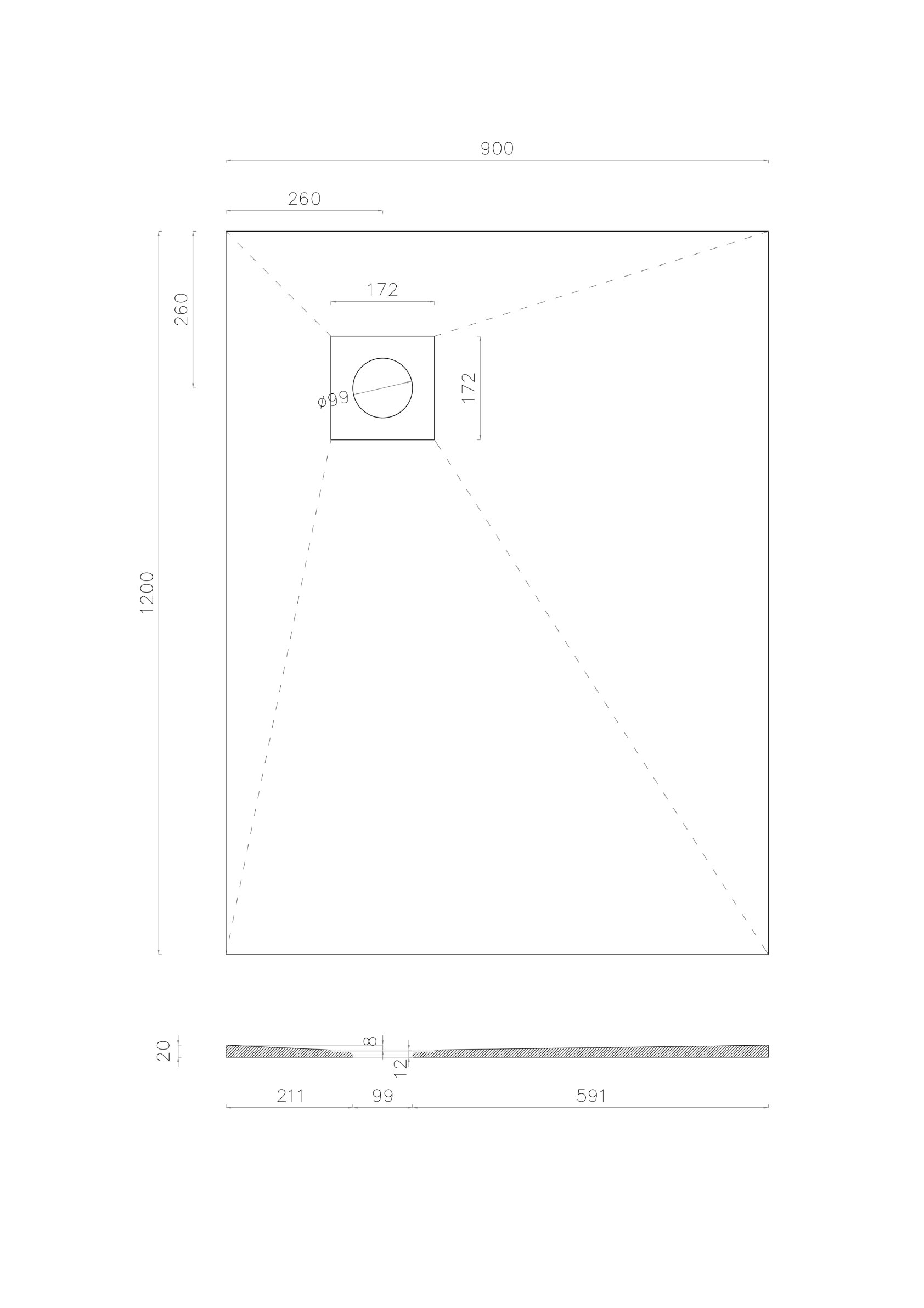

SF1209COR1200 x 900 x 20mm Rectangular Shower Tray with Corner Drain

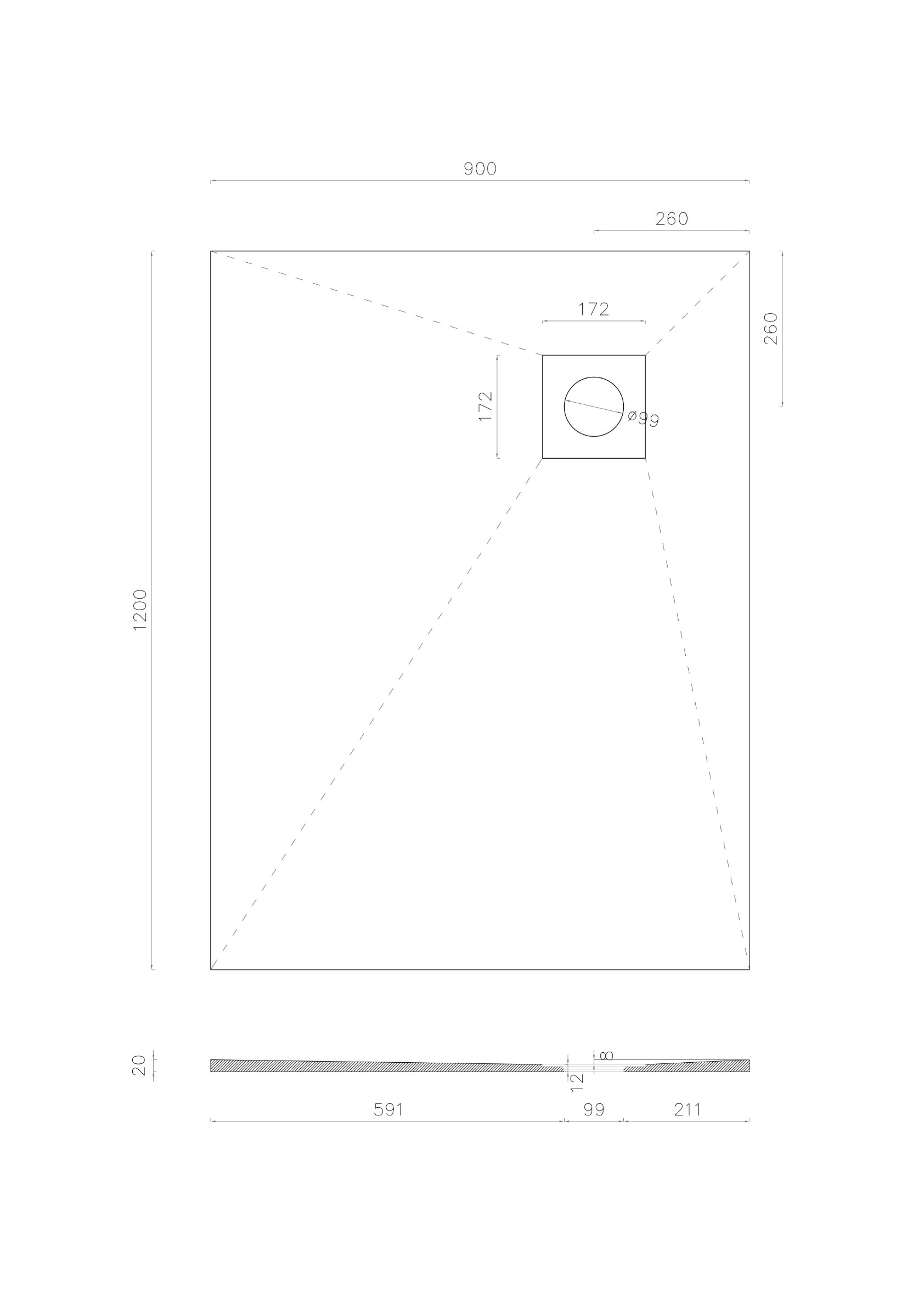

SF1209COR-R1200 x 900 x 20mm Rectangular Shower Tray with Right Corner Drain

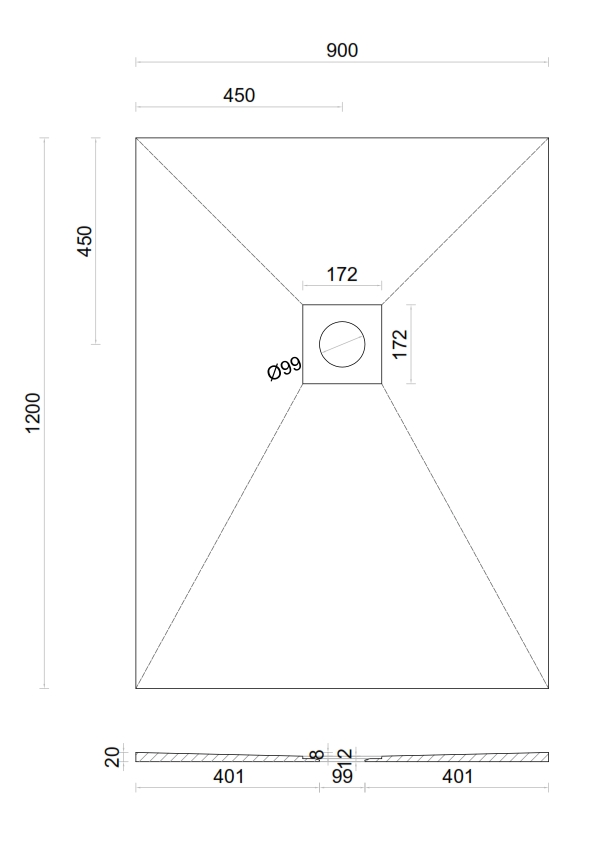

SF1209OFF1200 x 900 x 20mm Rectangular Shower Tray with Offset Drain

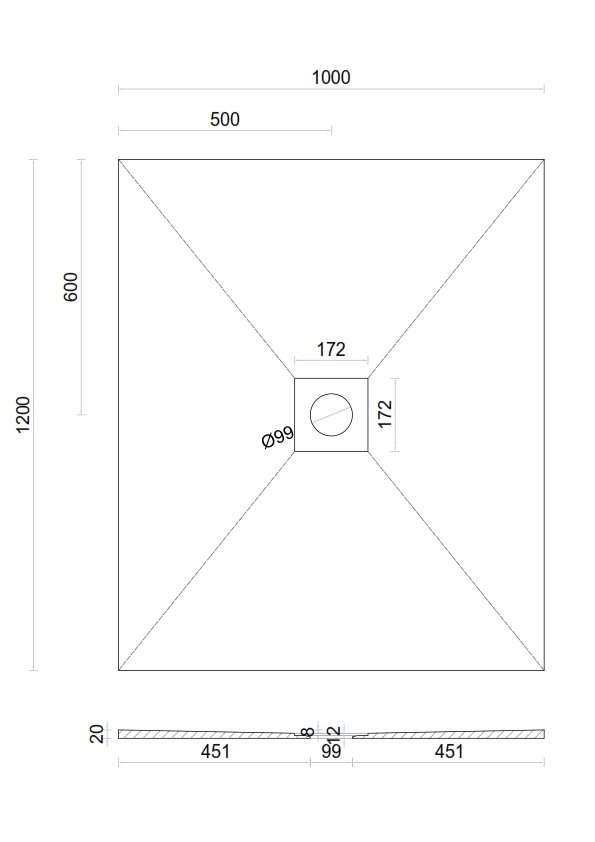

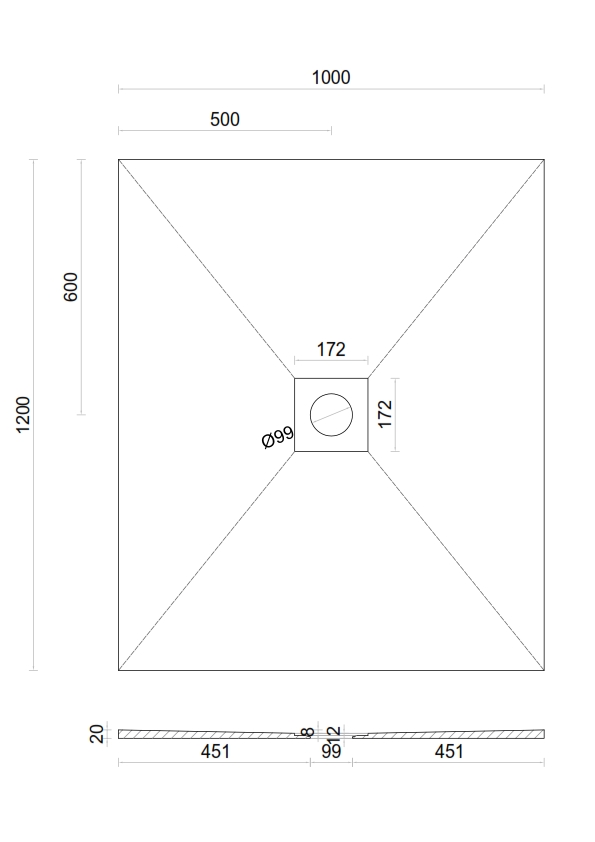

SF1210CEN1200 x 1000 x 20mm Rectangular Shower Tray with Centre Drain

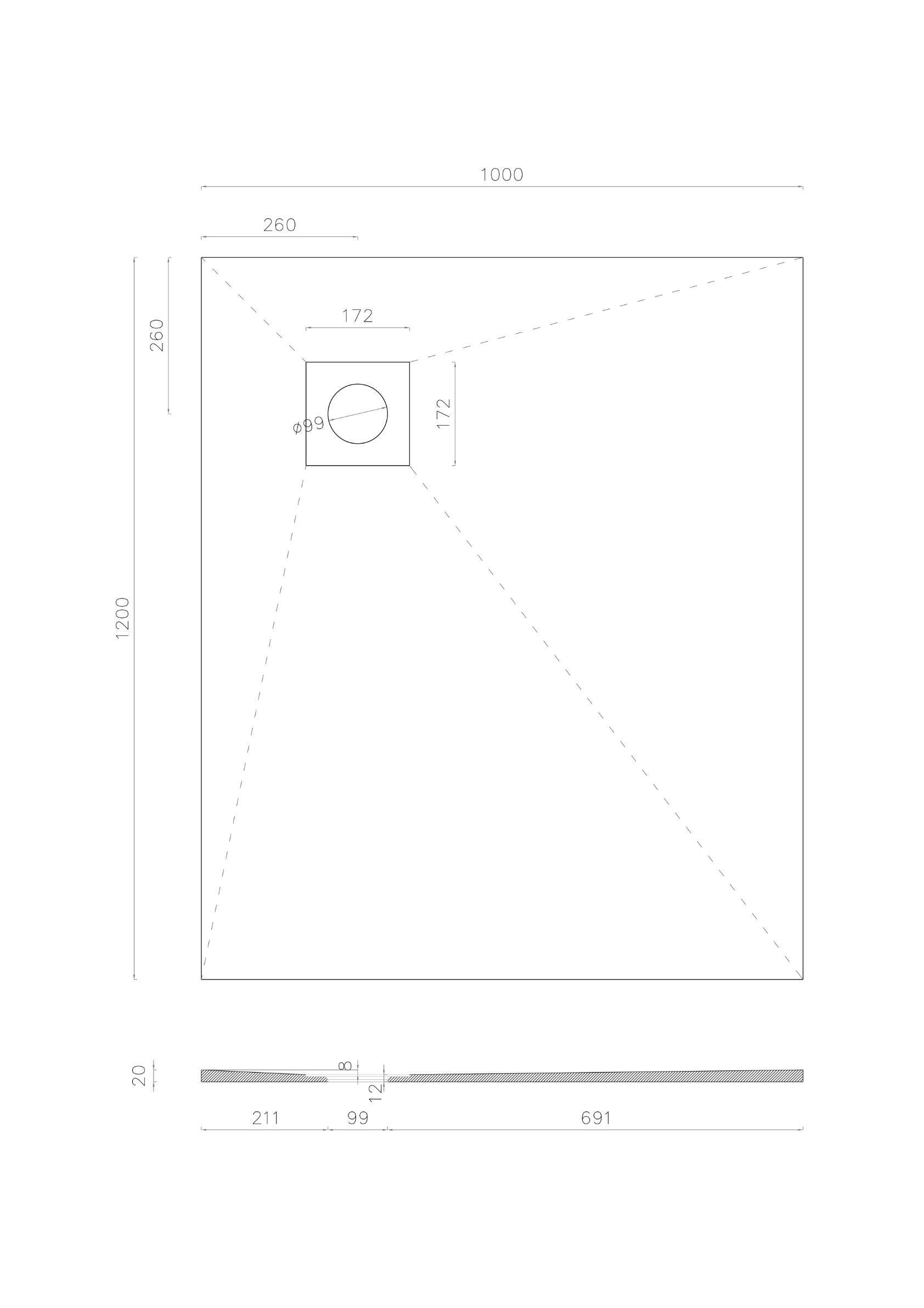

SF1210COR1200 x 1000 x 20mm Rectangular Shower Tray with Corner Drain

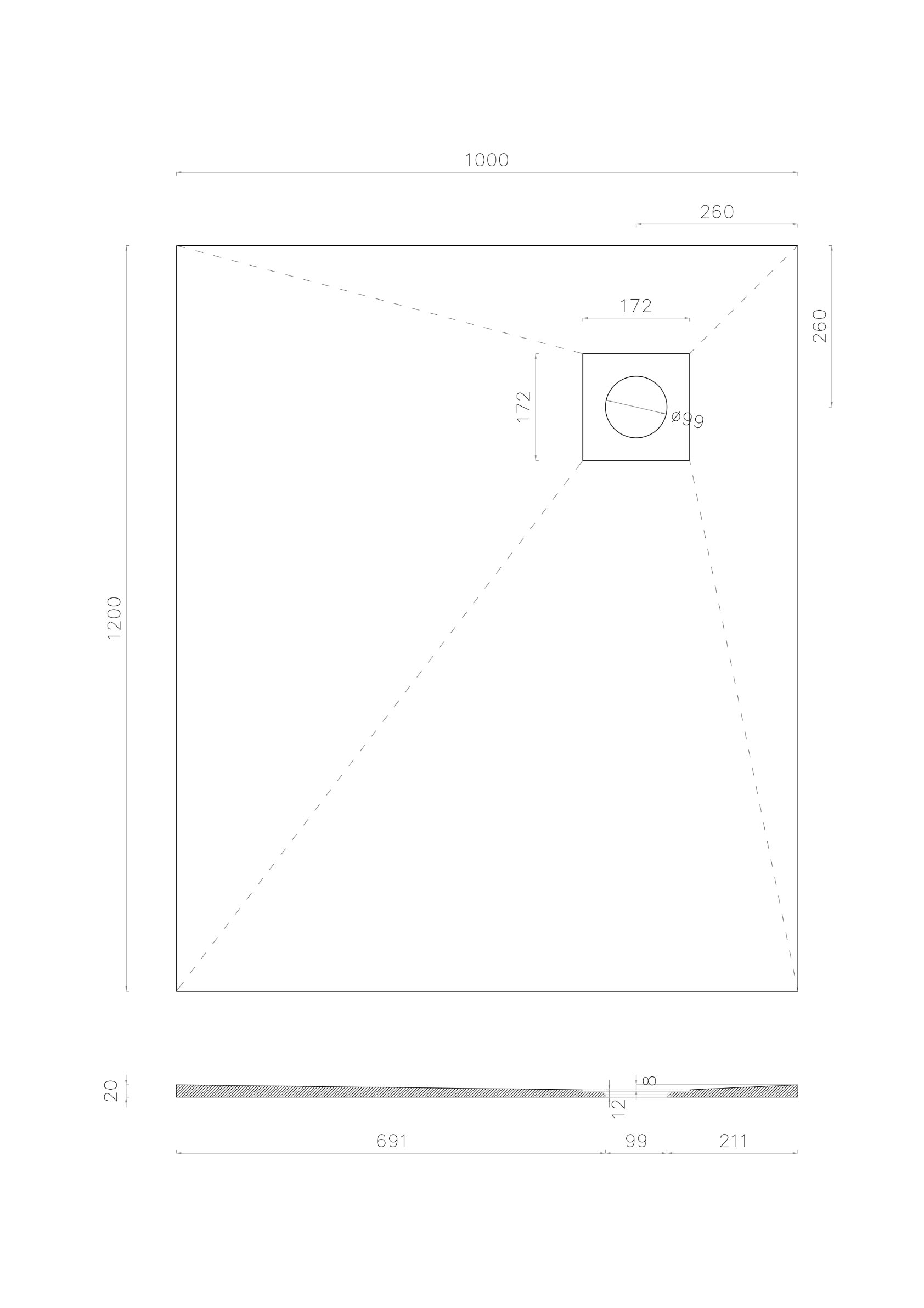

SF1210COR-R1200 x 1000 x 20mm Rectangular Shower Tray with Right Corner Drain
SF1210OFF1200 x 1000 x 20mm Rectangular Shower Tray with Offset Drain

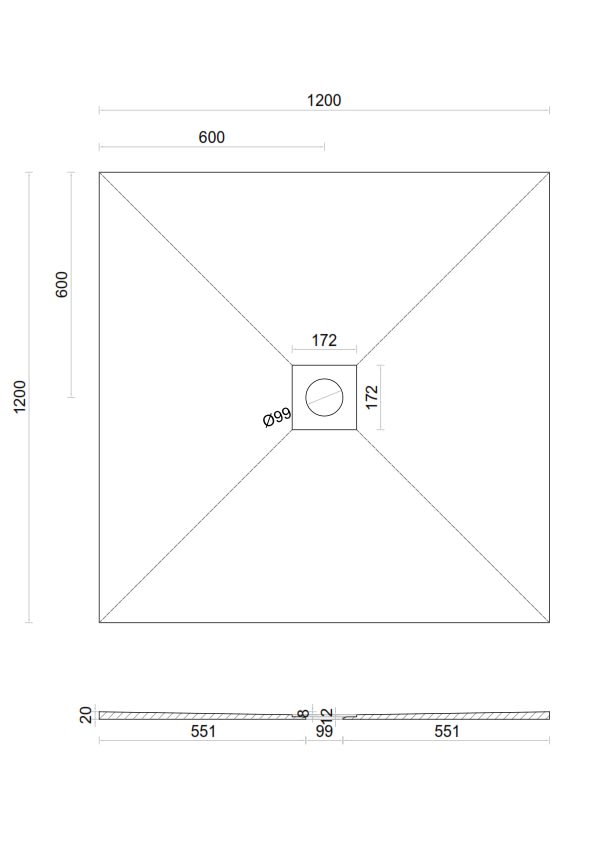

SF1212CEN1200 x 1200 x 20mm Square Shower Tray with Centre Drain

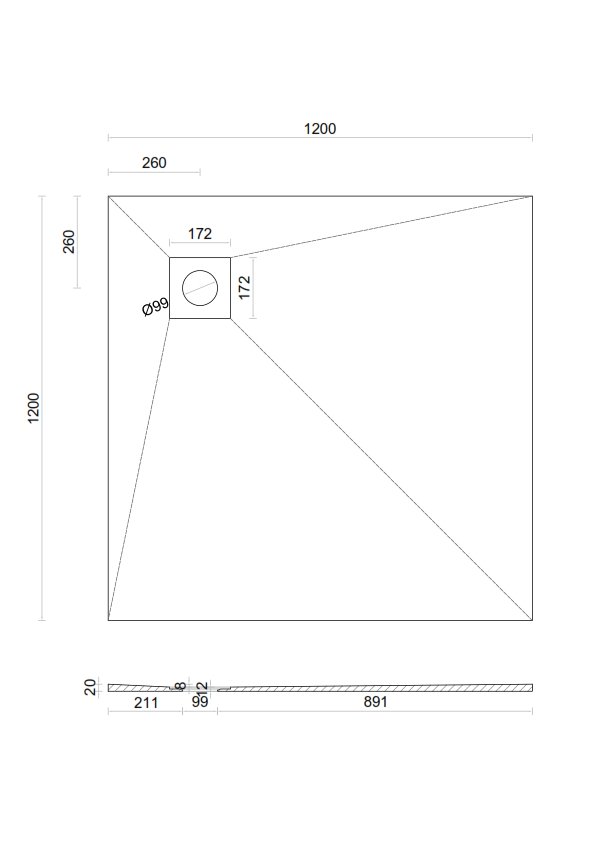

SF1212COR1200 x 1200 x 20mm Square Shower Tray with Corner Drain
SF1212OFF1200 x 1200 x 20mm Square Shower Tray with Offset Drain

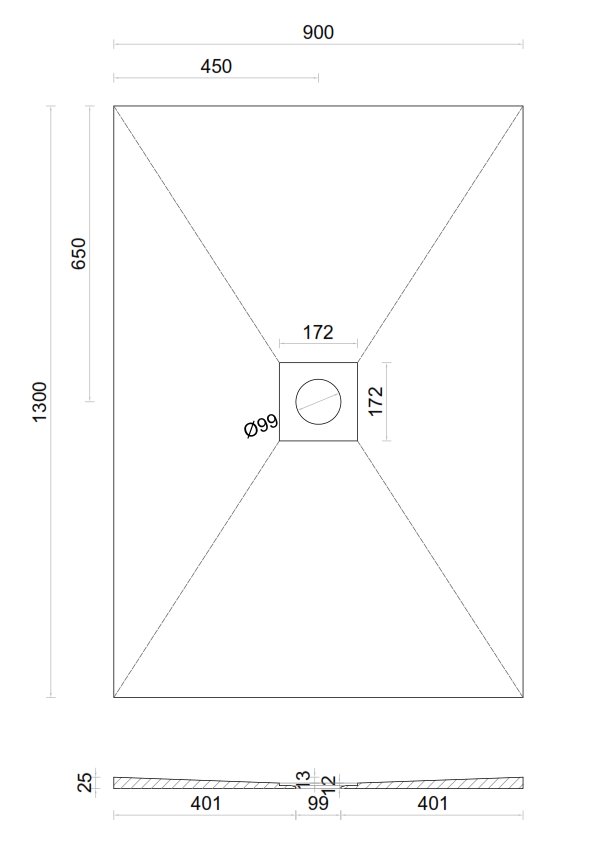

SF1309CEN1300 x 900 x 20mm Square Shower Tray with Centre Drain

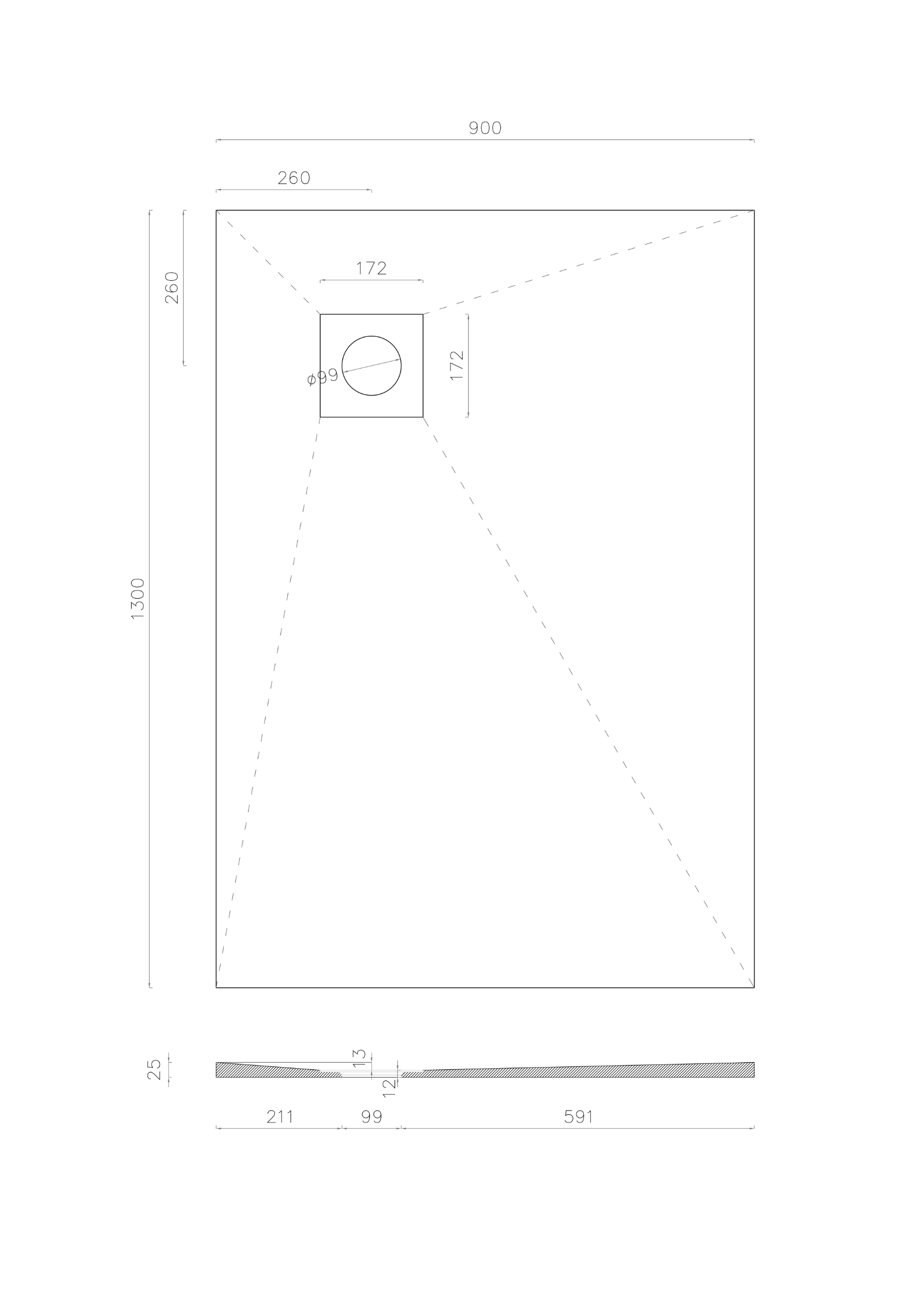

SF1309COR1300 x 900 x 20mm Square Shower Tray with Corner Drain

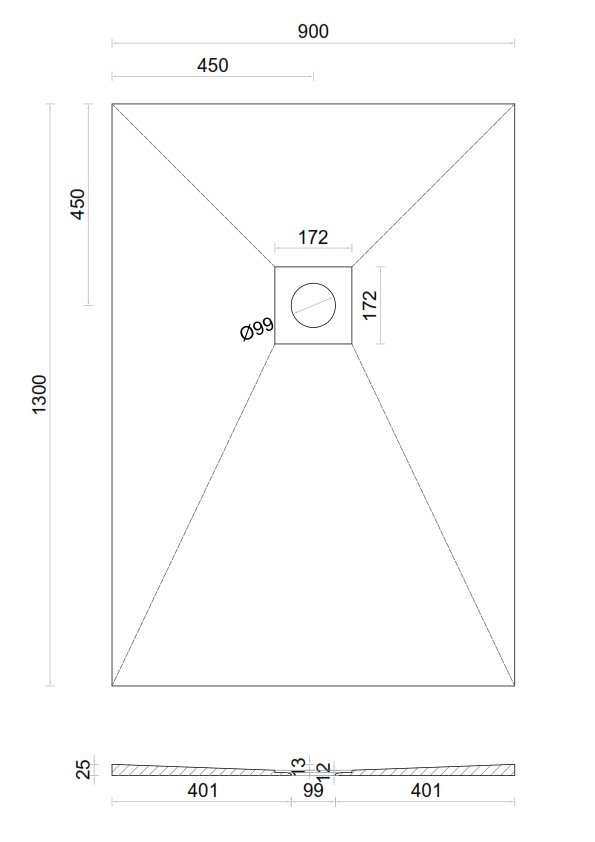

SF1309OFF1300 x 900 x 20mm Square Shower Tray with Offset Drain
SF1409CEN1400 x 900 x 20mm Square Shower Tray with Centre Drain
SF1409COR1400 x 900 x 20mm Square Shower Tray with Corner Drain
SF1409OFF1400 x 900 x 20mm Square Shower Tray with Offset Drain

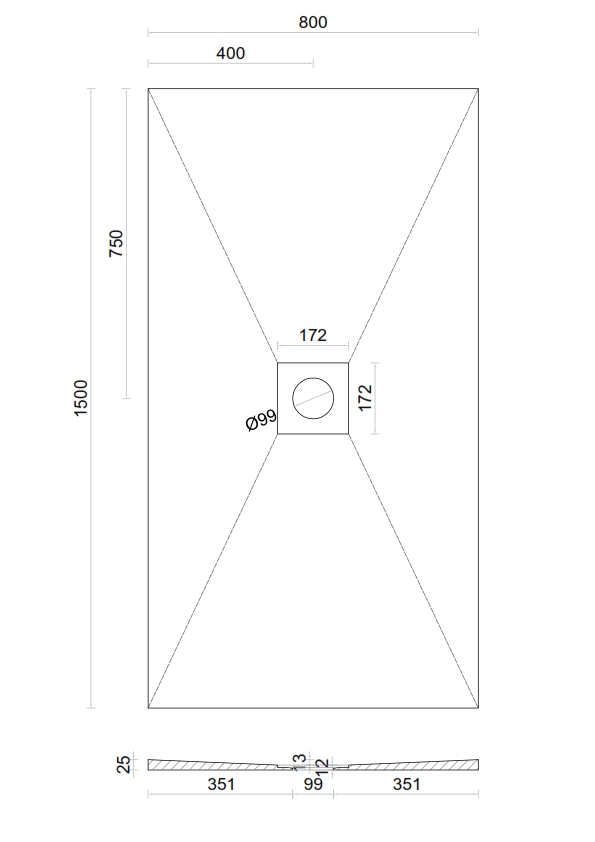

SF1508CEN1500 x 800 x 25mm Rectangular Shower Tray with Centre Drain

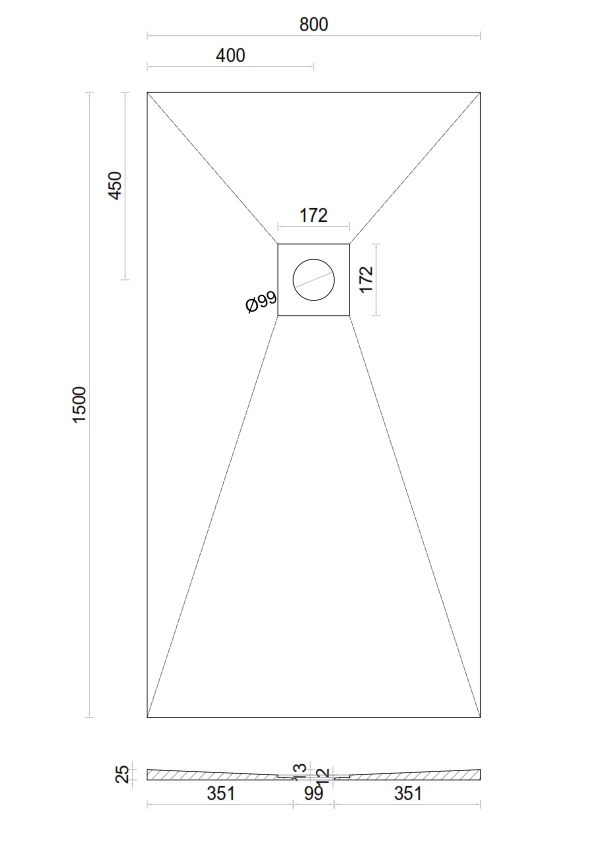

SF1508OFF1500 x 800 x 25mm Rectangular Shower Tray with Offset Drain

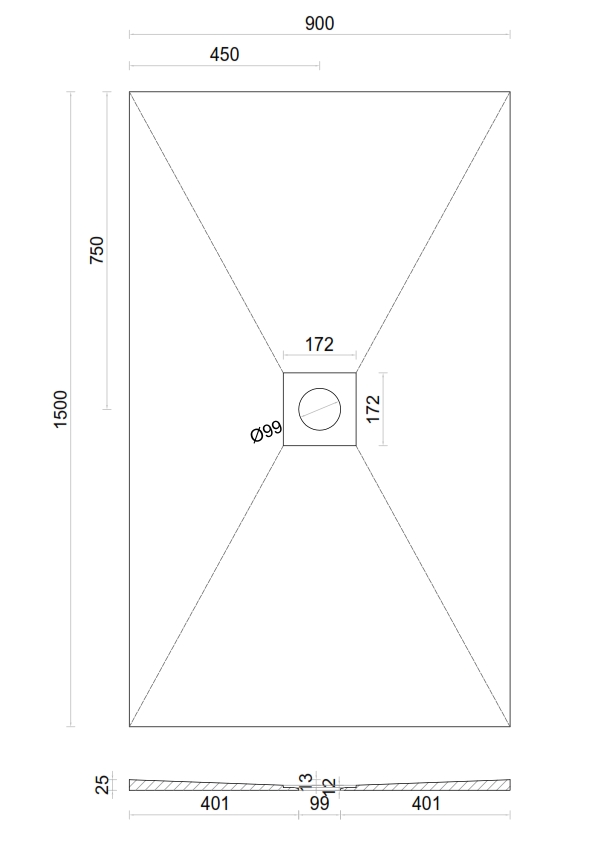

SF1509CEN1500 x 900 x 25mm Rectangular Shower Tray with Centre Drain
SF1509OFF1500 x 900 x 25mm Rectangular Shower Tray with Offset Drain
SF1809CEN1800 x 900 x 25mm Rectangular Shower Tray with Centre Drain

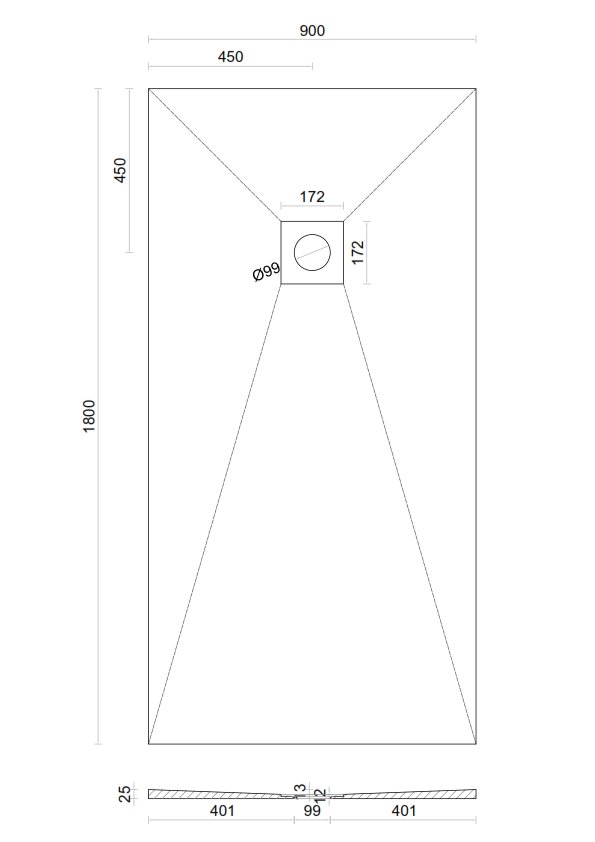

SF1809OFF1800 x 900 x 25mm Rectangular Shower Tray with Offset Drain
SFDRAINSquare Drain

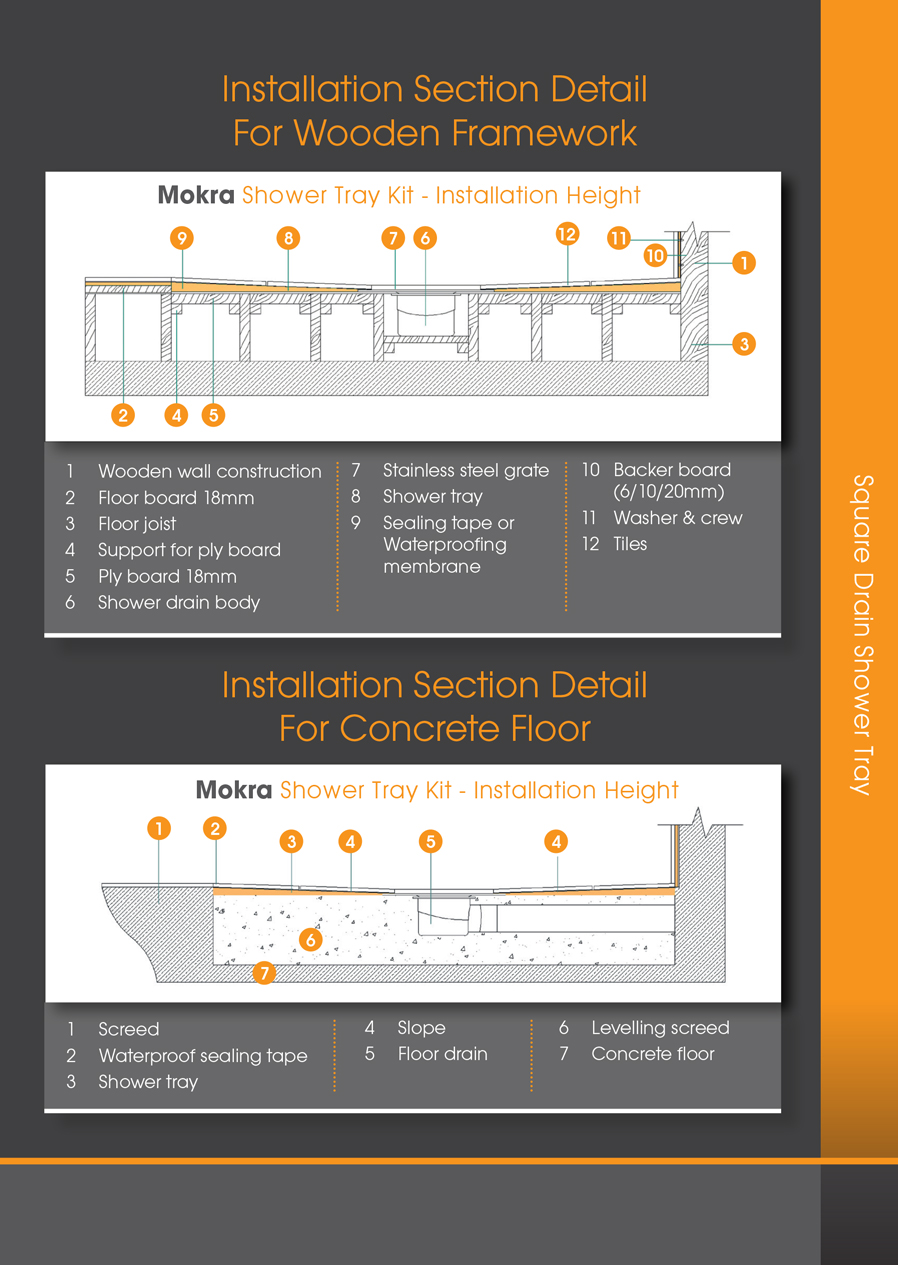

Installation

1

1

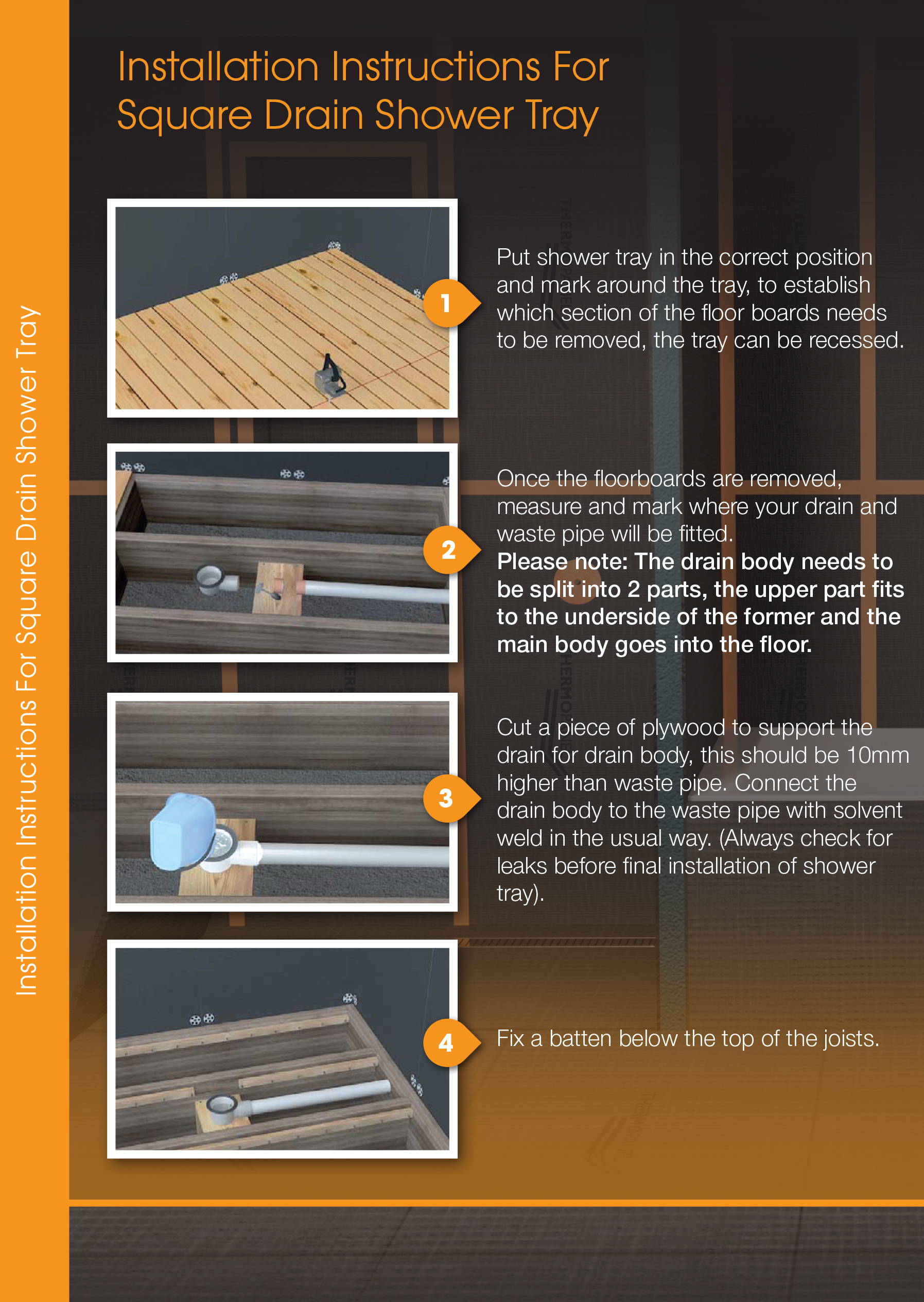

Put shower tray in the correct position and mark around the tray, to establish which section of the floor boards need to be removed, the tray can be recessed.

2

2

Once the floorboards are removed, Measure and mark where your drain and waste pipe will be fitted.

3

3

Cut a piece of plywood to support the drain for drain body, this should be 10mm higher than waste pipe. Connect the drain body to the waste pipe with solvent weld in the usual way. (Always check for leaks before final installation of shower tray).

4

4

Fix a batten below the top of the joists.

5

5

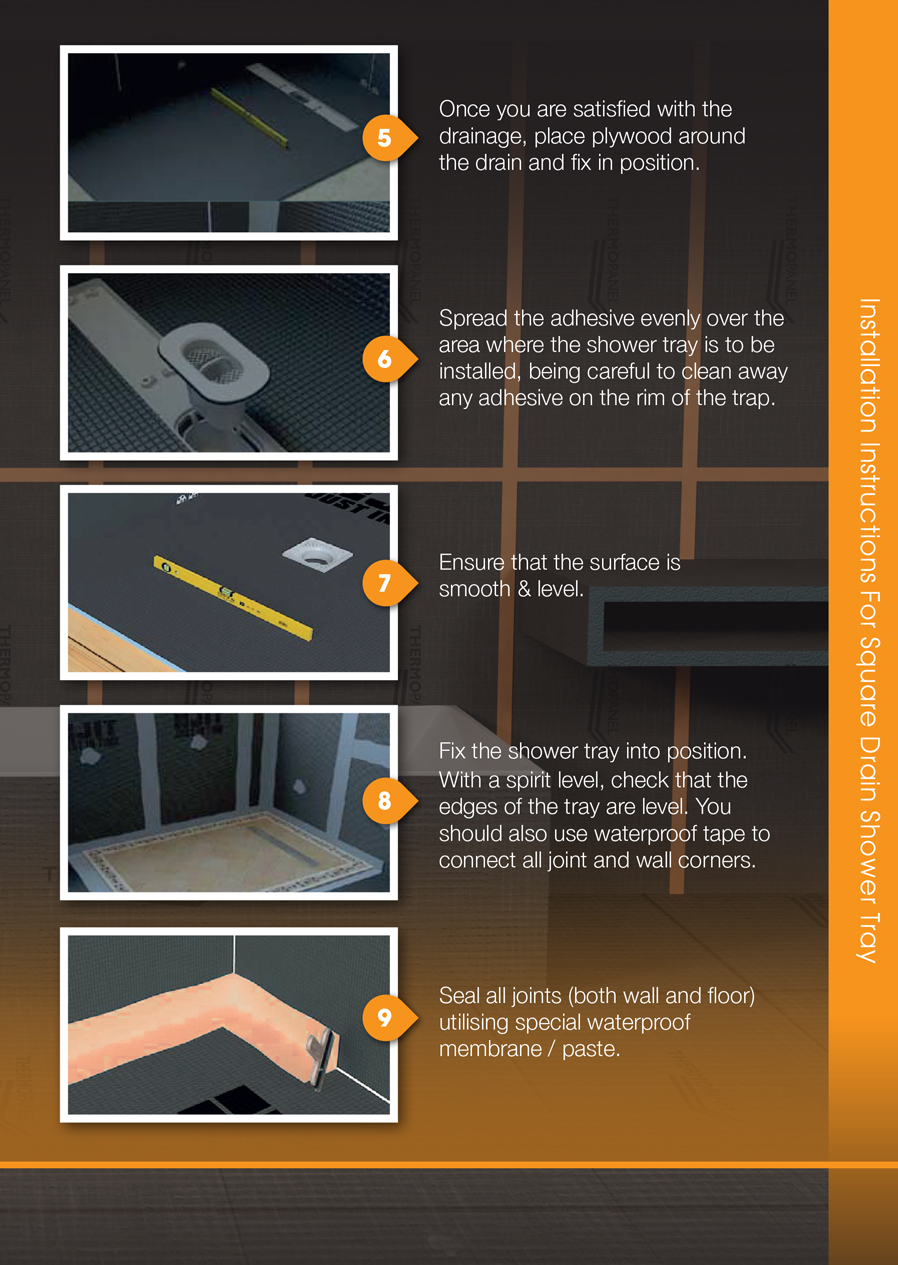

Once you are satisfied with the drainage, place plywood around the drain and fix in position.

6

6

Spread the adhesive evenly over the area where the shower tray is to be installed, being careful to clean away any adhesive on the rim of the trap.

7

7

Ensure that the surface is smooth & Level.

8

8

Fix the shower tray into position. With a spirit level, check that the edges of the tray are level. Also you should use waterproof tape to connect all joint and wall corners.

9

9

Seal all joints (both wall and floor) utilising
special waterproof membrane / paste.

10

10

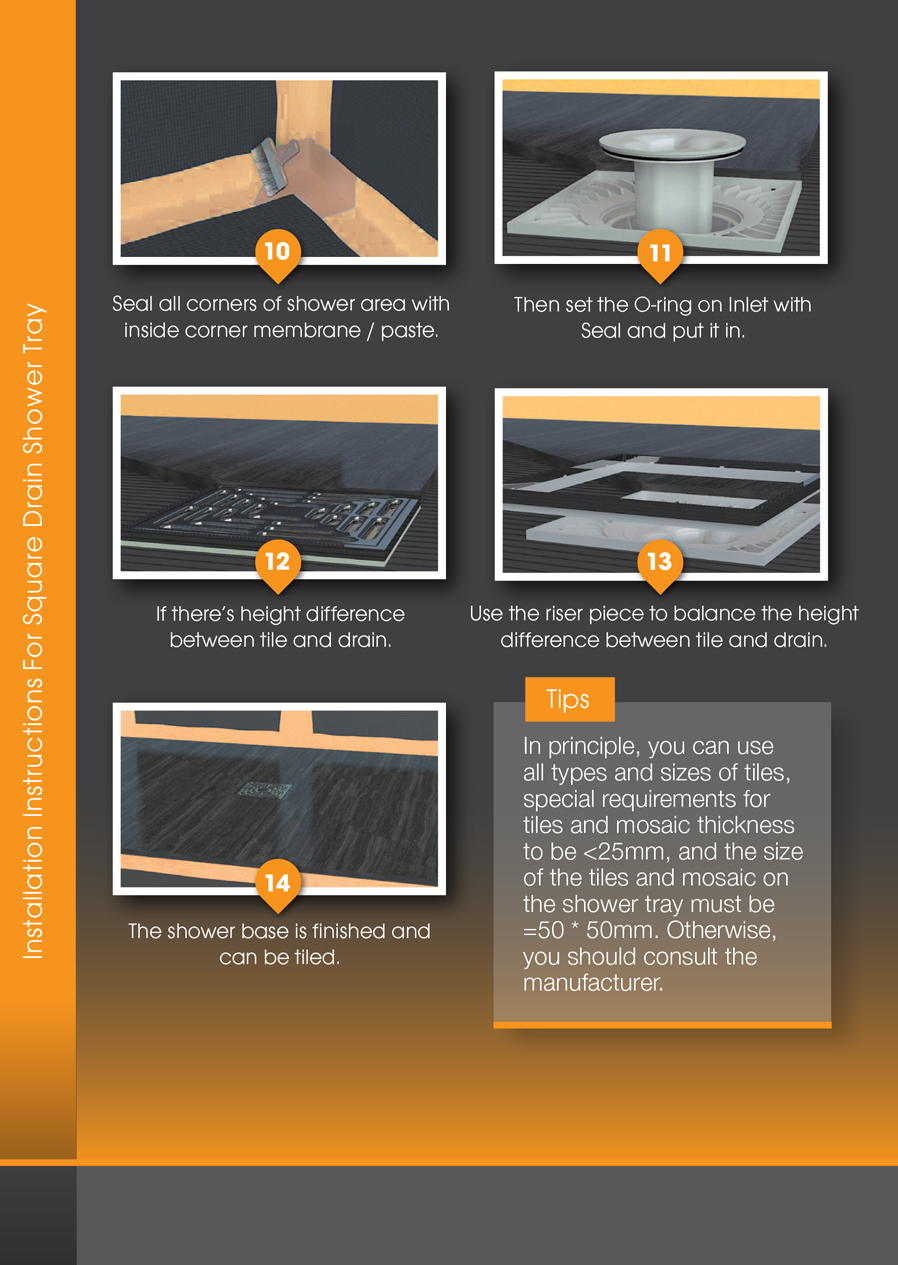

Seal all corners of shower area with inside corner membrane / paste.

11

11

Then set the O-ring on Inlet with Seal and put it in.

12

12

If there’s height difference between tile and drain.

13

13

Use the riser piece to balance the height difference between tile and drain.

14

14

The shower base is finished and can be tiled.

In principle, you can use all types and sizes of tiles, special requirements for tiles and mosaic thickness to be <25mm, and the size of the tiles and mosaic on the shower tray must be =50 * 50mm. Otherwise, you should consult the manufacturer.
